Import Data via API

This page describes how to load data into the Blender spreadsheet via API using the CSV Importer extension. These examples will only work when the extension is installed.

Here are 5 different approaches:

1. CSV - Load from CSV files
2. DataFrame - Load directly from Polars DataFrames
3. JSON - Load from JSON/dictionary data
4. Excel - Load from Excel files
5. Parquet - Load from Parquet files

---

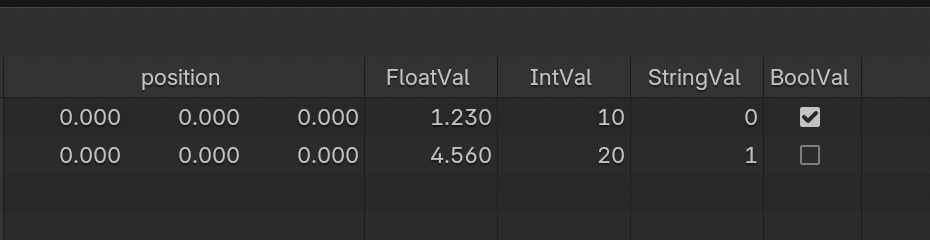

CSV to Blender

Load data from a CSV file into Blender.

from io import StringIO
from pathlib import Path
import bpy

from csv_importer.csv import load_csv

csv_data = StringIO(
    """
FloatVal,IntVal,BoolVal,StringVal
1.23,10,true,Hello
4.56,20,false,World
"""
)

temp_dir = Path(bpy.app.tempdir)
csv_path = temp_dir / "example.csv"

csv_path.write_text(csv_data.getvalue().strip(), encoding="utf-8")

obj = load_csv(csv_path)
print(obj.name)

For CSV files, there's also drag'n'drop support: Drag the file into Blender's viewport like this:

Note

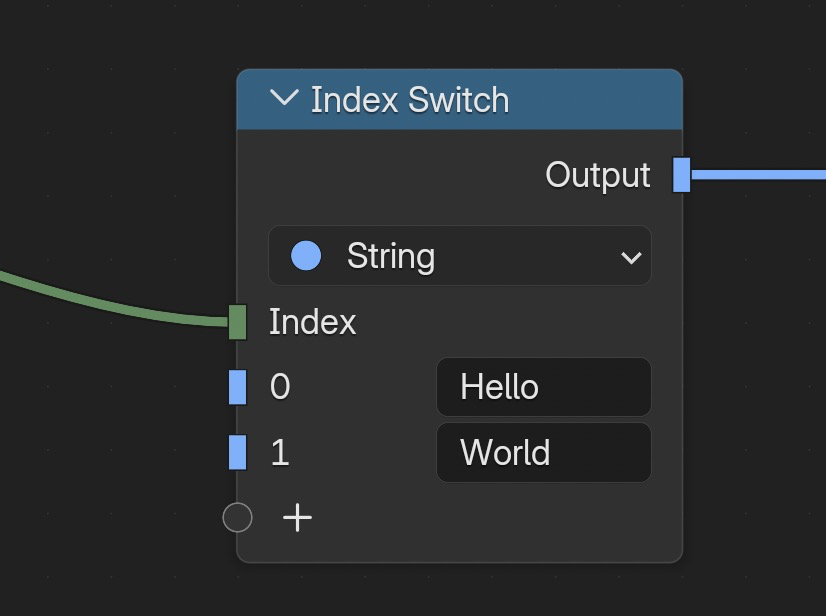

String columns are stored as integers (indices). In Geometry Nodes, search for "CSV" to find the Index Switch node, which lets you access the actual string values.

---

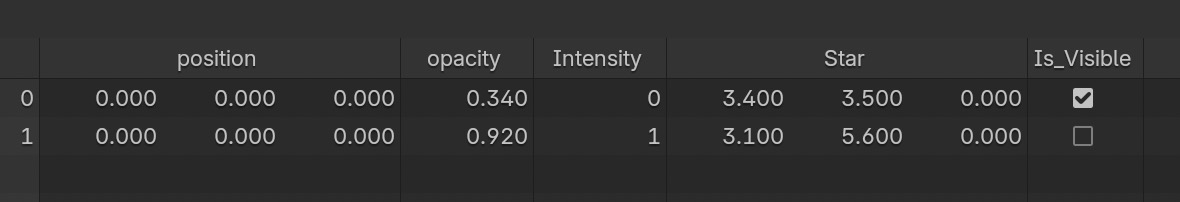

DataFrame to Blender

Load data directly from a Polars DataFrame.

import polars as pl
from csv_importer.parsers import polars_df_to_bob

df = pl.DataFrame([
    pl.Series("Intensity", ["Hello", "World"]),
    pl.Series("opacity", [0.34, 0.92]),
    pl.Series("Is_Visible", [True, False]),
    pl.Series("Star", [[3.4, 3.5, 0.0], [3.1, 5.6, 0.0]]),
])
obj = polars_df_to_bob(df, name="MeshVector")

---

JSON to Blender

Load data from a Python dictionary (JSON-like structure) by converting it to a DataFrame first.

import polars as pl
from csv_importer.parsers import polars_df_to_bob

json_data = {
    "Intensity": ["Hello", "World"],
    "opacity": [0.34, 0.92],
    "Is_Visible": [True, False],
    "Star": [
        [3.4, 3.5, 0.0],
        [3.1, 5.6, 0.0]
    ]
}

df = pl.DataFrame(json_data)
obj = polars_df_to_bob(df, name="MeshVector")

---

Excel to Blender

Load data from an Excel file. This example has two parts: first we create an Excel file, then we read it into Blender.

Step 1: Create an Excel file (optional)

Skip this if you already have an Excel file.

# Uncomment once to install:
# import subprocess, sys
# subprocess.check_call([sys.executable, "-m", "pip", "install", "xlsxwriter"])

import bpy
import polars as pl
from pathlib import Path

data_polars = pl.DataFrame({
    "MyFloat": [42.12, 12.33],
    "Is_Visible": [True, False],
    "Intensity": [10, 20],
})

temp_dir = Path(bpy.app.tempdir)
path = temp_dir / "simple_excel_polars.xlsx"

data_polars.write_excel(path)

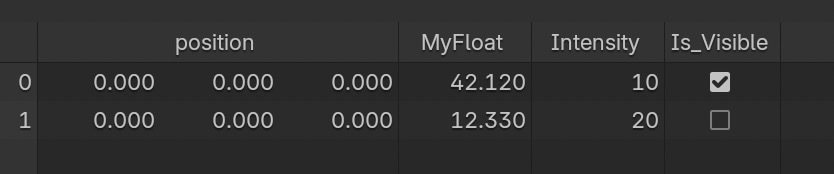

Step 2: Load Excel into Blender

# Uncomment once to install:
# import subprocess, sys
# subprocess.check_call([sys.executable, "-m", "pip", "install", "fastexcel", "pyarrow"])

import bpy
import polars as pl
from pathlib import Path
from csv_importer.parsers import polars_df_to_bob

temp_dir = Path(bpy.app.tempdir)
path = temp_dir / "simple_excel_polars.xlsx"

df = pl.read_excel(path, sheet_name="Sheet1")
obj = polars_df_to_bob(df, name="MeshVector")

---

Parquet to Blender

Load data from a Parquet file. This example has two parts: first we create a Parquet file, then we read it into Blender.

Step 1: Create a Parquet file (optional)

Skip this if you already have a Parquet file.

import bpy
import polars as pl
from pathlib import Path

data_polars = pl.DataFrame({
    "MyFloat": [42.12, 12.33],
    "Is_Visible": [True, False],
    "Intensity": [10, 20],
})

temp_dir = Path(bpy.app.tempdir)
path = temp_dir / "example.parquet"

data_polars.write_parquet(path)

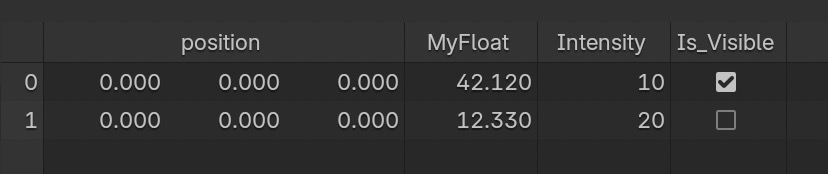

Step 2: Load Parquet into Blender

import bpy
import polars as pl
from pathlib import Path
from csv_importer.parsers import polars_df_to_bob

temp_dir = Path(bpy.app.tempdir)
path = temp_dir / "example.parquet"

df = pl.read_parquet(path)
obj = polars_df_to_bob(df, name="MeshVector")
